Product Name : Nylon Webbing

Description
Nylon webbing is a woven material made from polyamide fibers, valued for its abrasion resistance, flexibility, and reliable tensile performance. Its ability to withstand repeated bending, friction, and everyday handling makes it well suited for adjustable straps and components that regularly interact with buckles or hardware. Typical applications include backpacks and luggage, pet collars and leashes, footwear, sporting goods, belts, securing straps, and other sewn or assembled products.

Nylon webbing can be developed in different widths, thicknesses, yarn specifications, weave structures, and colors to suit specific product designs. Plain, twill, herringbone, ribbed, and other weave options can be considered according to the required appearance and construction. Custom jacquard designs, printing, cutting, heat sealing, folding, punching, sewing, and selected functional finishing can also be incorporated depending on the application and project requirements.

Fu Jyi Lin supports OEM and ODM nylon webbing projects from specification review and sample development through converting and volume production. Customers can provide physical samples, drawings, artwork, assembly details, or application requirements for evaluation. This allows the webbing construction and secondary processing to be developed around the finished product rather than treated as separate sourcing steps.



 Features

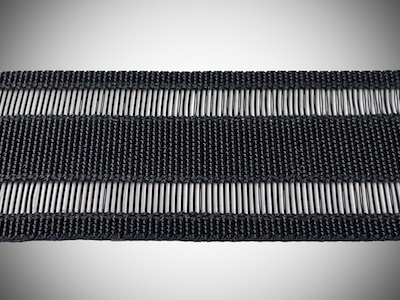

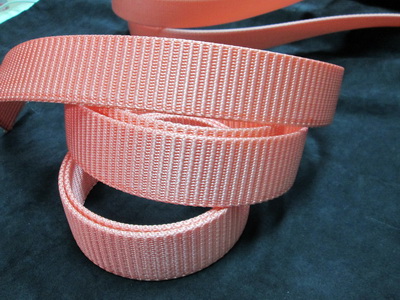

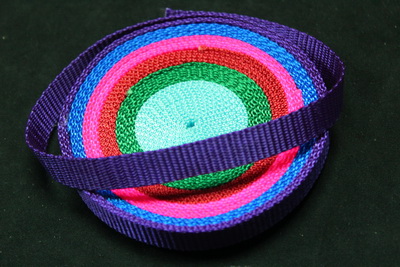

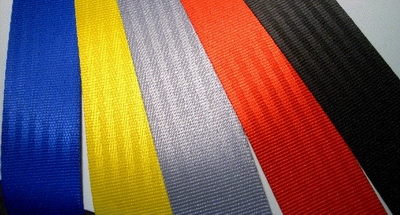

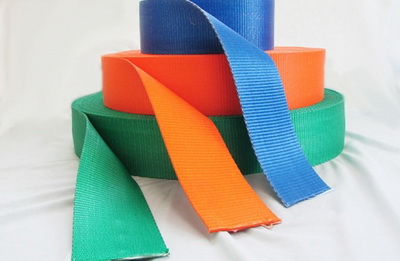

1 - Nylon Tape

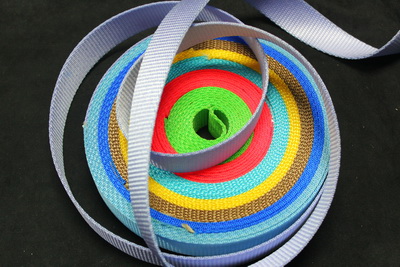

2 - Nylon Tape

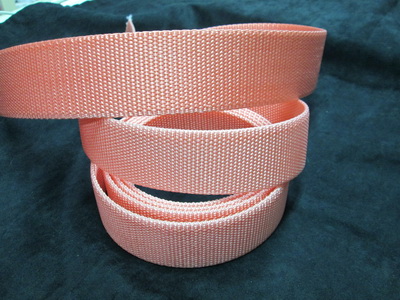

3 - Nylon Tape

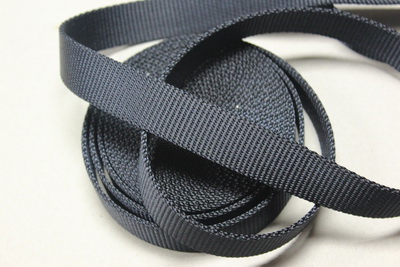

4 - Nylon Tape

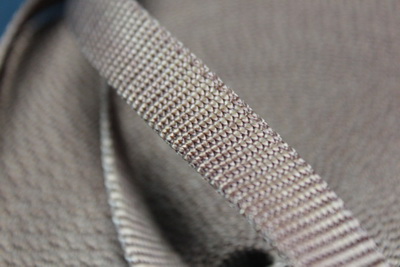

5 - Nylon Tape

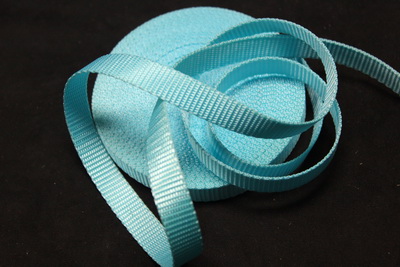

6 - Nylon Tape

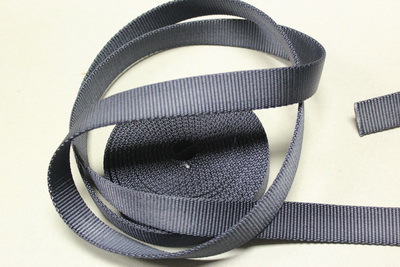

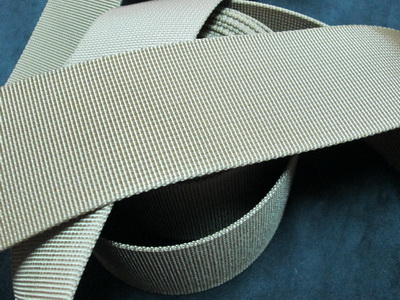

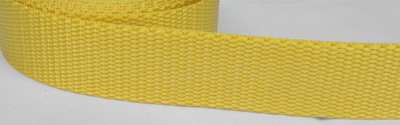

7 - Nylon Webbing

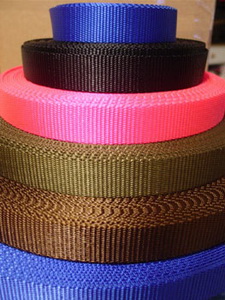

8 - Nylon Webbing

9 - Nylon Webbing


10 - Nylon Webbing

11 - Bedford Cord Nylon Webbing

12 - Tank Vein Nylon Webbing


13 - Pearl Vein Nylon Webbing

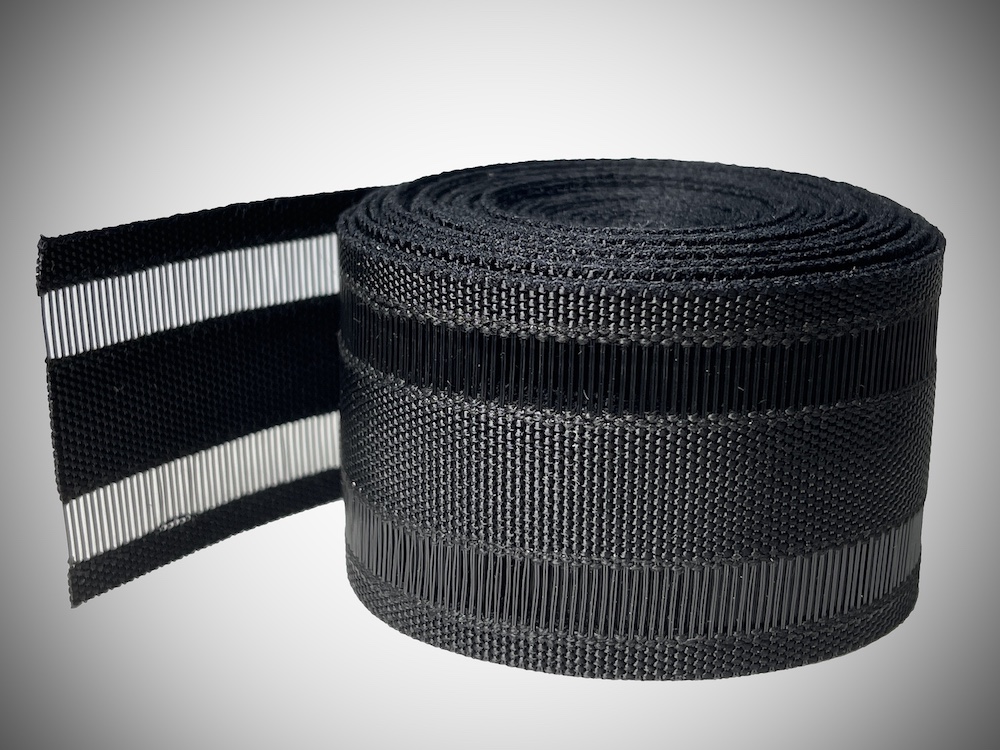

14 - Special nylon webbing



 Specification

**Product Name:**
Nylon Webbing

**Material:**
100% Nylon (Polyamide); different nylon yarn specifications can be selected according to webbing construction and end-use requirements.

**Construction:**
Flat or Tubular Webbing; other constructions can be evaluated according to product requirements.

**Standard Widths:**
8, 10, 12, 15, 20, 22, 25, 29, 33, 40, and 50 mm; custom widths are available according to product design and application requirements.

**Standard Thicknesses:**
1.0, 1.2, 1.5, 1.8, 2.2, 2.5, 2.8, and 3.0 mm; other thicknesses can be developed according to webbing construction and application requirements.

**Yarn Denier:**
100D, 210D, 420D, 840D, and 1680D; other deniers are available depending on weave construction and performance requirements.

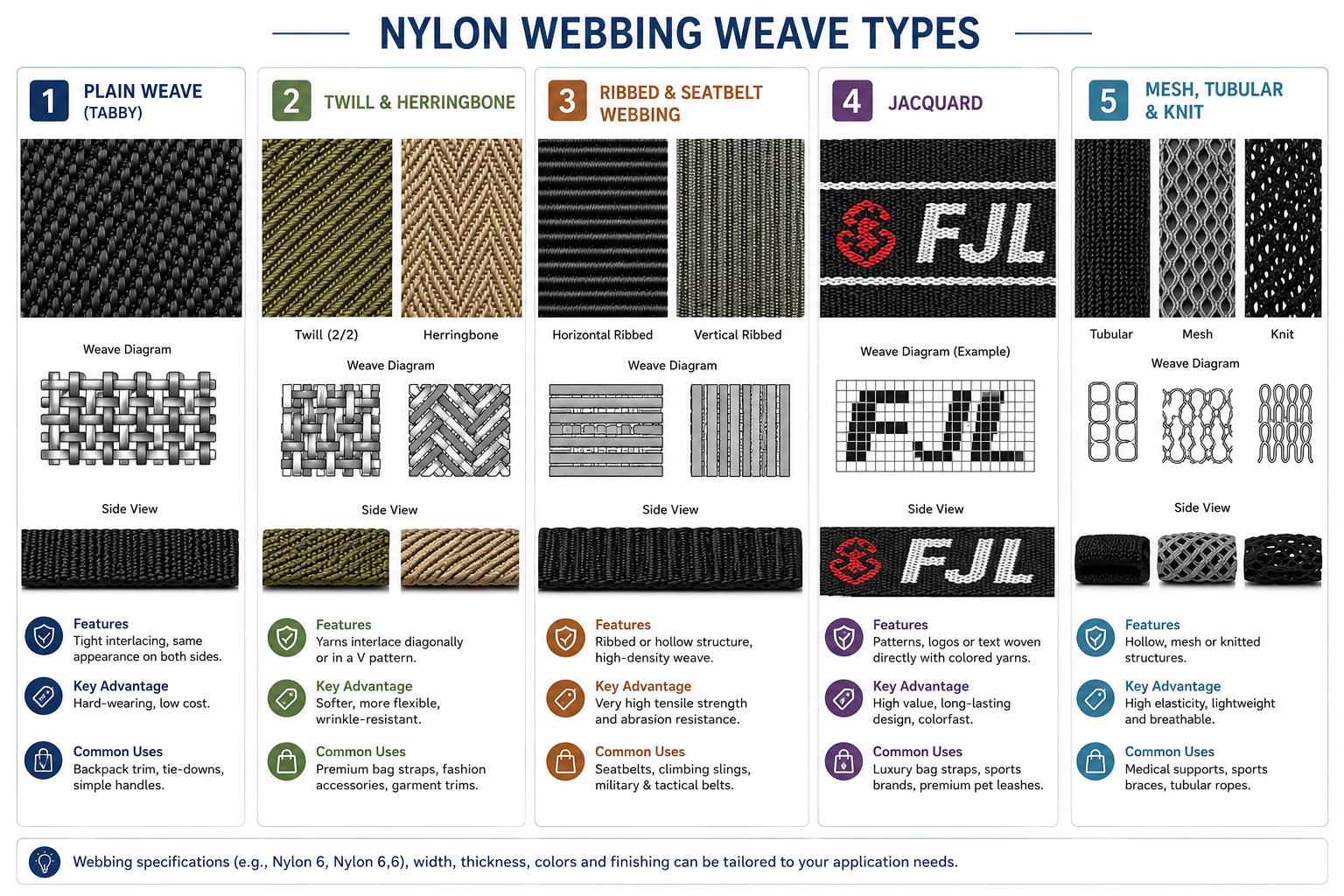

**Weave Options:**
Plain Weave, Herringbone Twill, Double-Sided Twill, Twill, Ribbed Weave, and other custom weave structures.

**Standard Colors:**
Black, White, Gray, Brown, Green, Blue, Red, Yellow, and Orange; custom dyeing and color matching are available for other colors.

**Custom Dyeing MOQ:**
3,000 yards per color. Reasonable color variation may occur between approved color references and production dye lots, as well as between different dye lots.

**Jacquard Design:**
Custom jacquard webbing can be developed with logos, text, patterns, or other brand-specific designs.

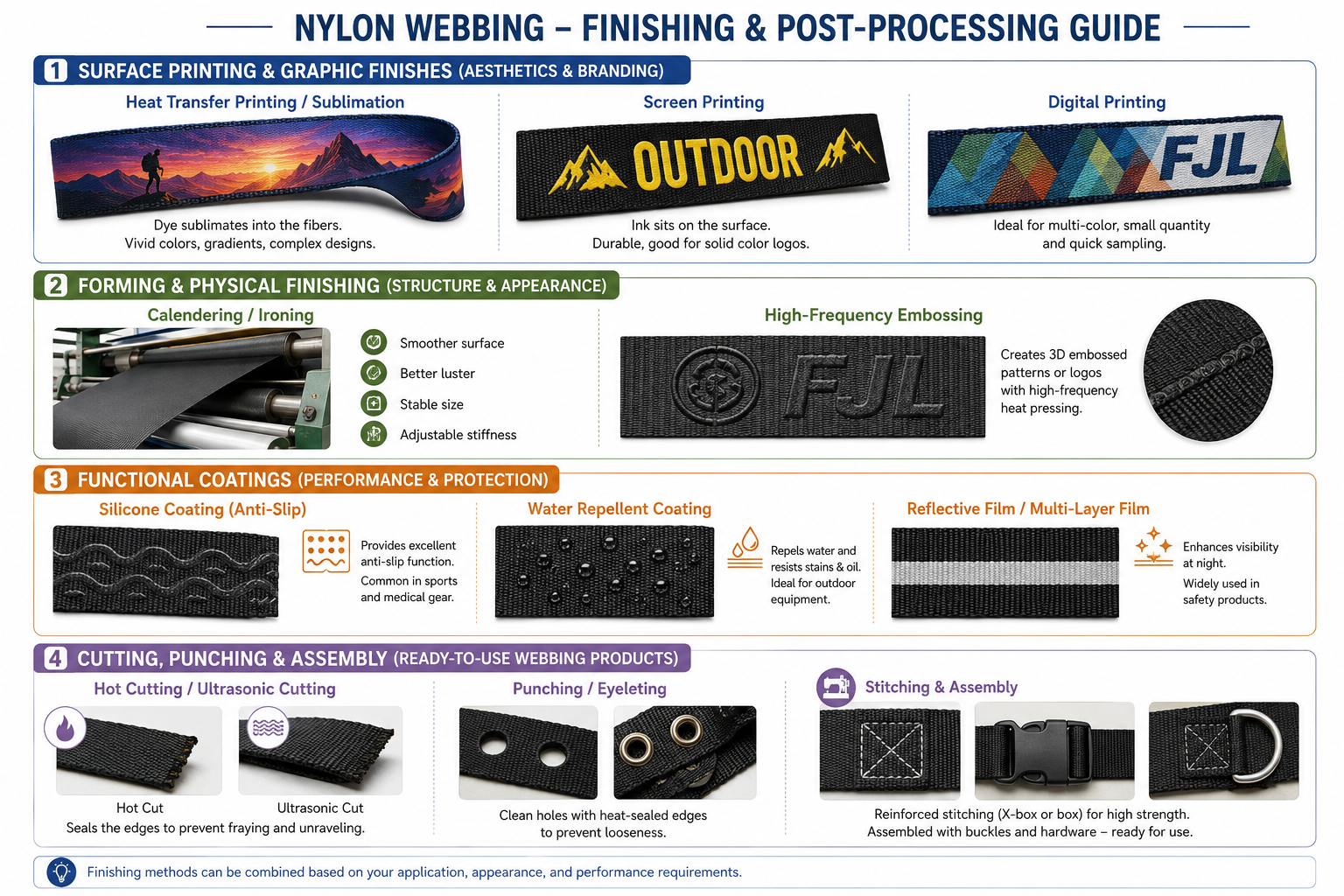

**Printing Options:**
Screen Printing, Heat Transfer Printing, and Sublimation Printing. The appropriate printing method is evaluated according to webbing construction, surface characteristics, artwork, colors, and finished-product requirements.

**Basic Converting:**
Custom-length cutting, heat cutting and edge sealing, folding, punching, ironing, sewing, and other component processing are available. Processing methods can be evaluated according to webbing width, thickness, weave construction, dimensional tolerances, and final assembly requirements.

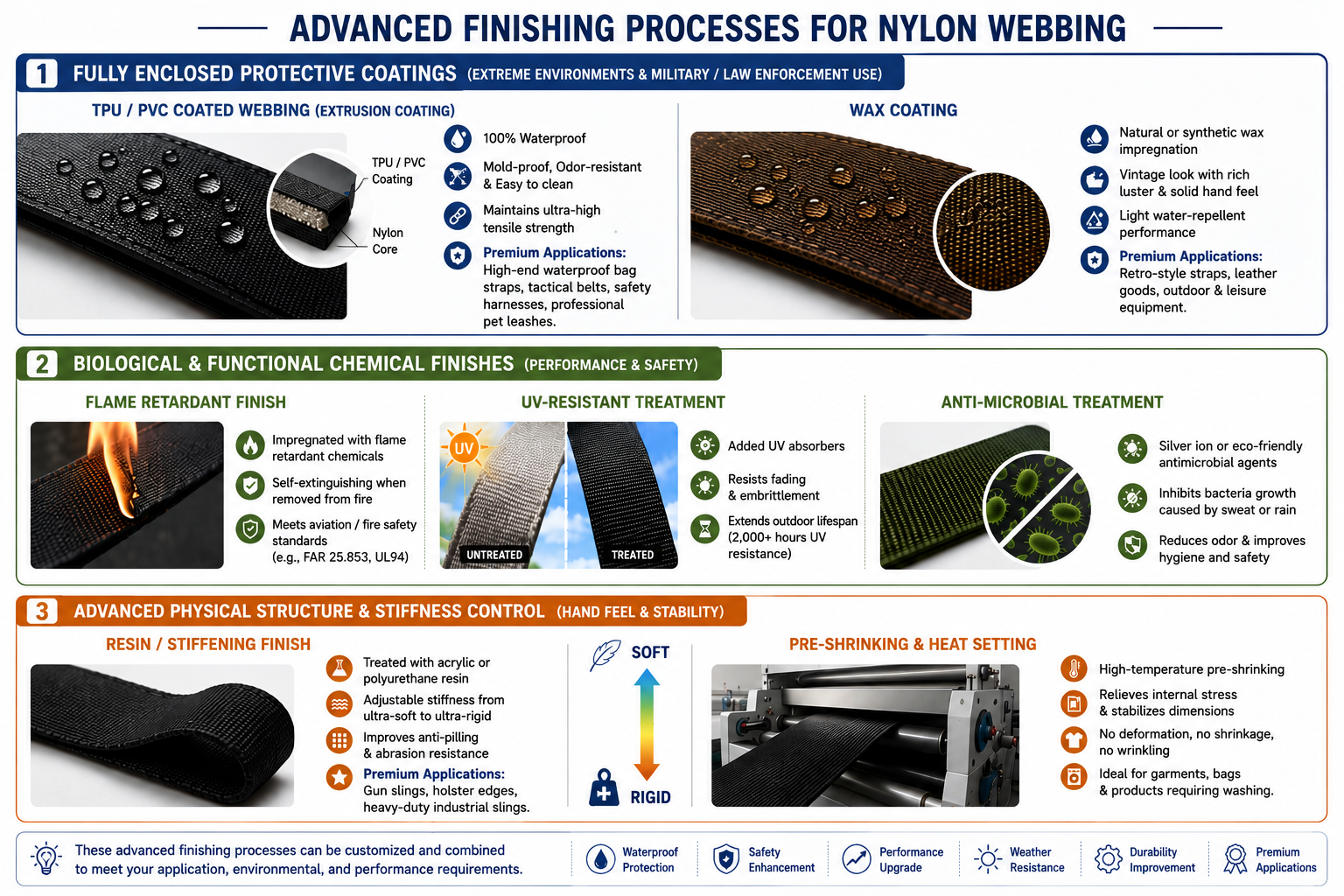

**Functional Finishing:**
Water-repellent, UV-resistant, flame-retardant, anti-mildew, antibacterial, resin treatment, specialty coating, and other functional treatments can be evaluated according to the intended application. Suitability and performance depend on the nylon material, webbing construction, color, processing conditions, and end-use environment. For projects with specific performance requirements, applicable test methods, target values, or acceptance criteria should be provided during development.

**Standard Roll Packing:**
50 meters or 100 meters per roll.

**Bulk Packing:**
Multiple rolls per OPP bag or non-roll bulk packing can be arranged according to product and order requirements.

**Custom Packaging:**
Special or individual packaging can be arranged according to shipping, assembly, or product requirements. Additional charges may apply.

**Minimum Order Quantity (MOQ):**
1,000 meters per color / size. Orders below the standard MOQ can be evaluated and quoted separately based on specifications, quantity, and processing requirements.

**OEM / ODM Services:**
Custom development is available for dimensions, yarn specifications, weave structures, colors, jacquard designs, printing, basic converting, functional finishing, and packaging. Additional assembly and component-processing requirements can also be evaluated according to the finished-product design.

### Specification Notes

Specifications may vary depending on nylon yarn selection, webbing construction, width, thickness, weave structure, color, finishing process, and end-use requirements. In addition to the standard specifications listed above, Fu Jyi Lin supports OEM and ODM development for custom dimensions, yarn deniers, colors, weave structures, jacquard designs, printing, converting, functional finishing, and packaging.

Custom-dyed colors may show reasonable variation due to yarn characteristics, dye lots, and processing conditions. For products requiring specific tensile strength, elongation, abrasion resistance, UV resistance, flame retardancy, water repellency, or other performance characteristics, customers should provide the applicable test method, target values, or acceptance criteria during the quotation or sampling stage. Final product performance should be verified by the customer or through a designated third-party testing laboratory based on the intended application.

Customers may provide application details, dimensional drawings, artwork, physical samples, assembly information, or other technical requirements to support material selection, manufacturing review, sample development, and quotation.



 Asks Description

Frequently Asked Questions (FAQ)

1. What information should I provide for an accurate quotation?

Please provide the required width, thickness, color, weave, quantity, intended application, and any performance requirements for your nylon webbing. If cutting, sewing, printing, jacquard weaving, or functional finishing is required, include these details as well. Physical samples, drawings, artwork, assembly information, or reference specifications can also help us evaluate the appropriate construction, processing method, and quotation.

2. What industries and applications commonly use nylon webbing?

Nylon webbing is commonly used by manufacturers and product developers in bags and luggage, footwear, pet products, sporting goods, apparel accessories, industrial products, and other sewn assemblies. Typical applications include shoulder straps, handles, collars, leashes, harnesses, belts, footwear straps, adjustable straps, and components used with buckles or hardware. The appropriate construction depends on the required strength, flexibility, dimensions, and end-use conditions.

3. How does nylon webbing differ from polyester and PP webbing?

Nylon webbing offers flexibility and strong abrasion resistance, making it suitable for products exposed to repeated bending, friction, or frequent adjustment. Polyester provides good dimensional stability and low moisture absorption, making it practical for durable and outdoor applications. PP is lightweight, absorbs very little moisture, and resists many common chemicals. Material selection should consider the finished product, required flexibility, operating environment, and performance requirements.

4. Is sample development recommended before mass production?

Yes, especially for custom dimensions, colors, weave structures, jacquard designs, printing, or secondary processing. Sampling helps confirm appearance, dimensions, processing details, and compatibility with the finished product before volume production. If tensile strength, abrasion resistance, flame retardancy, or other performance characteristics are required, customers should verify the sample according to their applicable standards or through a designated third-party testing laboratory.

5. How can Fu Jyi Lin support my OEM project?

Fu Jyi Lin supports nylon webbing projects from specification review and sample development through weaving, converting, and volume production. Customers can begin with a physical sample, drawing, artwork, assembly requirement, or product concept. We can evaluate suitable webbing specifications and integrate jacquard, printing, cutting, sewing, functional finishing, and packaging as required, helping customers develop webbing into production-ready components for ongoing OEM programs.
